– Connection: pushing the male part (push).
– Disconnection: pulling the male part (pull).
– Occlusion: with protruding valve.
– Pluggable: in the absence of pressure.
– Disconnection under pressure: only as an emergency maneuver.
– Interchangeability: ISO 7241-1 part A standard

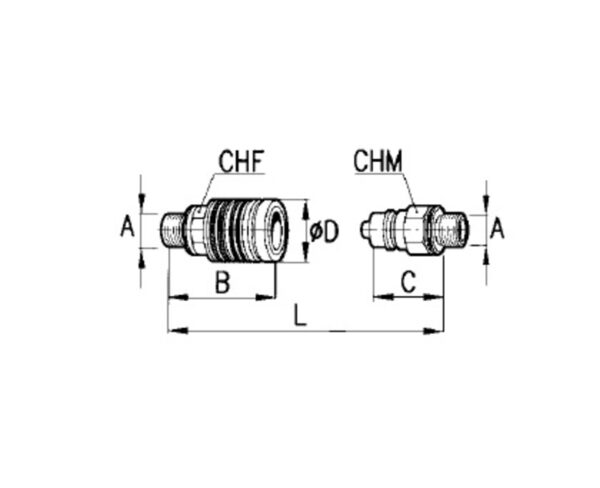

Male thread DIN 2353
External diameter – D 38 mm
Length – B 62.3mm
Length – L 97.3mm
Chiave – CH 27 mm
Thread – A M18x1.5
Serie CPV
