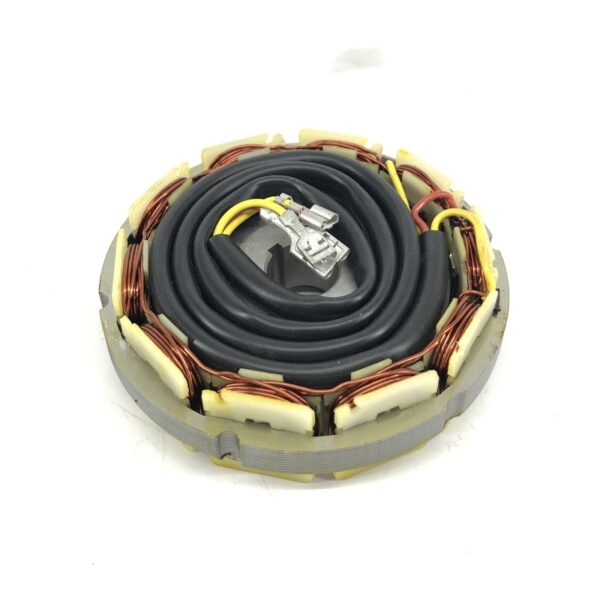

RING ALTERNATOR 12V – 14A. MOUNTED IN THE FAN – LOMBARDINI – KOHLER – 1157158
€131,41 (€107,71 + VAT)
Availability: 2 available for immediate delivery
stator external diameter 112 mm.
rotor hub external diameter 81.5 mm.
rotor hub height 21 mm.
Hub hole diameter 20 mm. with 4 mm keyway.
total height 33 mm. including windings
Main applications with mounting in the cooling fan
Lombardini 904 – 914 engines
Lombardini LDA 672 – 673 engines second series and derivatives
- Additional information
Additional information
| Net weight | 0,94 kg |
|---|---|
| Brand | LOMBARDINI – KOHLER |
Related articles
Codifiche precedenti e successive
No previous encodings are available.
No subsequent encodings are available.
Spare parts - to check compatibility, enter the name of your vehicle
- Antonio Carraro - Tractor - SM SUPERTIGRE 3600 - Serie 13 "SM" - Engine: Lombardini 914
- Antonio Carraro - Tractor - SM TIGRONE 3600 - Serie 13 "SM" - Engine: Lombardini 914
- Antonio Carraro - Tractor - TIGRE 2600 - Serie 15 serial number starts with 15969012 - Engine: Lombardini 12LD475/2
- Ferrari - Tractor - 75 - Old Models - Engine: Lombardini LDA672 – second series mounted on the fan
- Ferrari - Tractor - 75 RS - Old Models - Engine: Lombardini LDA672 – second series mounted on the fan
- Ferrari - Tractor - System 75 RS - System - Engine: Lombardini 914
- Goldoni - Tractor - 230 - Universal from serial number 51900 up to serial number 127770 - Engine: Lombardini LDA672 – second series mounted on the fan
- Goldoni - Tractor - 230 - Universal from serial number A127771 up to serial number D350414 - Engine: Lombardini LDA672 – second series mounted on the fan
- Goldoni - Tractor - 233 - Universal from serial number A127771 up to serial number D350414 - Engine: Lombardini 914
- Goldoni - Tractor - 233 - Universal Nuovo from serial number E350415 up to serial number F520574 - Engine: Lombardini 914
- Goldoni - Tractor - 833 - Serie 800 - Engine: Lombardini 914
- Goldoni - Tractor - 933 - Serie 900 - Engine: Lombardini 914
- Goldoni - Tractor - 933 - Serie 900 RS/DT - Engine: Lombardini 914
- Valpadana - Tractor - 2533 SYNCRO - Old Models - Engine: Lombardini 914
