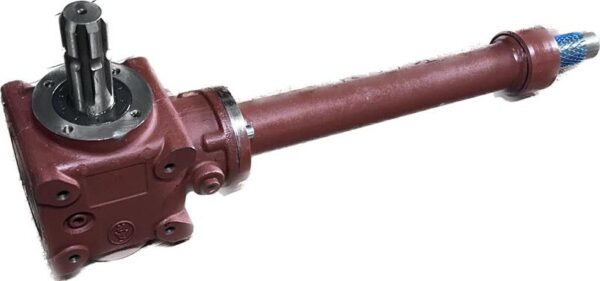

GEARBOX FOR CMR T20 GRASS FLIPPER WITH 520 mm EXTENSION. – AFTERMARKET – 4.01.31
Availability: Not available
with built-in freewheel
Standard input shaft diameter 1’3/8″ = 35 mm. with 6 splines
Output shaft diameter 35 mm. smooth with 10 mm keyway.
3:1 transmission ratio in multiplication
Total length 675 mm. including output shaft
4 upper – lower M10 holes, centre distance 88×88 mm.
4 M10 side holes, centre distance 90×90 mm.
extension centering diameter 77 mm.
Shipped without transmission oil 85W140 sold separately
- Additional information
Additional information
| Net weight | 18 kg |
|---|---|
| Brand | AFTERMARKET |
