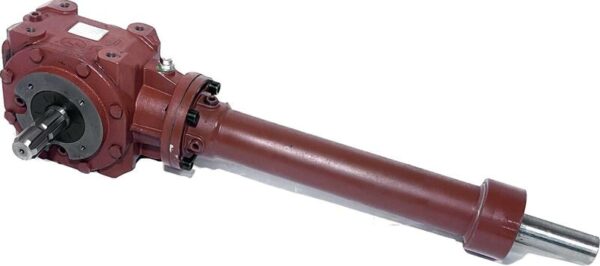

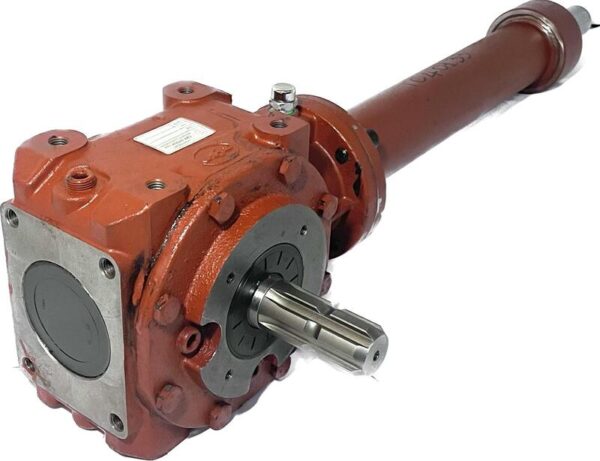

GEAR BOX FOR CMR T101 GRASS FLIPPER WITH 615 mm EXTENSION. – AFTERMARKET – 4.01.33
€619,75 (€507,99 + VAT)
Availability: 1 available for immediate delivery
with built-in freewheel
standard input shaft diameter 1’3/8″ = 35 mm. with 6 splines
output shaft diameter 40 mm. smooth with slot for 12 mm keyway.
transmission ratio 3:1 in multiplication
total length 820mm.
4 upper – lower M12 holes, center distance 83×114 mm.
4 side holes M12 center distance 83×114 mm.
extension centering diameter 99 mm.
Shipped without 85W140 transmission oil sold separately
- Additional information
Additional information
| Net weight | 34 kg |
|---|---|
| Brand | AFTERMARKET |
Codifiche precedenti e successive
No previous encodings are available.
No subsequent encodings are available.
