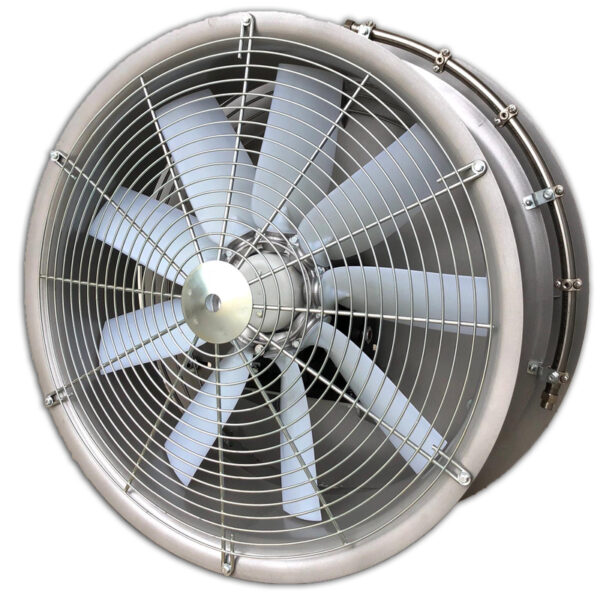

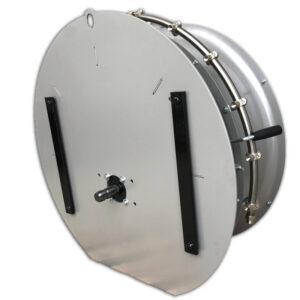

monobloc structure in welded steel
anticorrosive treatment with sandblasting and powder coating
2-speed + neutral transmission with cast iron box made in Italy
standard male PTO shaft 1’3 / 8 “(35 mm.) with 6 splines
700 mm diameter nylon-glass fan. with aluminum hub
straightening fins of the outgoing air flow
complete with stainless steel pipes with 6 + 6 1/4 “female connections
with brackets for fixing on “C” frame adjustable distance from 560 to 600 mm.
designed for direct cantilevered pump mounting – see code IC08.03
supplied without jets
