3 LEVER DOUBLE ACTING DISTRIBUTOR WITH 3/8″ BONDIOLI & PAVESI TYPE ML CONNECTORS – CERMAG – 80010
€302,56 (€ 248,00 + IVA)
Ships within 2/3 business days from order.
Description
The ML type distributors are standardly equipped for Carryover connection. This connection is made by closing one of the two oil recovery outlets with a 1/4″ Gas screw.
If the second threaded outlet hole is also plugged, the open-center distributor is transformed into a closed-center distributor.
Data
ML Model
Flow rate 40 litres per minute
Maximum operating pressure 250 Bar
Thread connections 3/8″ Gas = 16.5 mm.

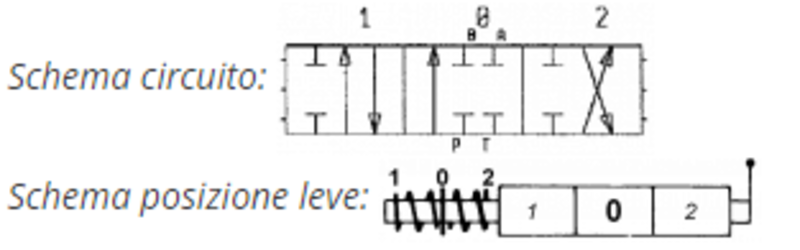

Lever circuit 1 – 2 Double effect
Leverage positions
0 – Fixed
1 – Spring return
2 – Spring return
Related Products:
12 in stock
To check compatibility with your vehicle, scroll downAdditional information
| Weight | 5,60 kg |
|---|---|
| Net weight | 5.60 Kg |
| Brand | |
| Item number | 80010 |
